HT1770(JIS SUS632J1) is an original standard of Nisshin Steel,which is an typical precipitation hardening stainless steel, mainly used for "steel belt"

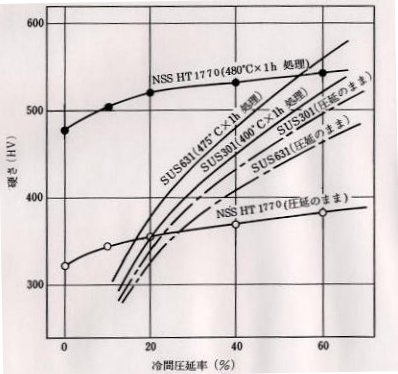

.Before aging treatoment in other words heat treatment,the hardness of this material is around HV350.But after aging treatment, it increase to around HV500.So,when you make a complex shapes with bent,It adapt best performance.It is superiior than general SUS CSP material.

There are similar material with this, such as SUS631.But to increase to HV500, Its hardness must be aroud HV400 in raw material.Thus, this HT1770 can make it shapen in soft and can harden with aging treatment.

When aging treatment it needs an hour in 475℃.

1. High weldability

2. High strength,high spring characteristics

3. Less Variability,less work hardening,stable material hardness,

*Its weldability is even better that of SUS631.And it is high resistant corrosion.

1,Low dust generating

2,static electricity

3,protection against vibration

4,surface flatness

5,capable of stably detecting the damage even under a high temperature environment.

6,capable of stably detecting the damage even under a frozen temperature environment.

Steel belt→High weldability
E ring and C ring→High strength
Tube grip spring→High fatigue strength
Retracter spring→Excellent spring characteristics and fatigue resistance
Parts of DVC→Complex shape and durability

Thickness : 0.2mm to 3.0mm

Width : under 1200mm
